Pallet Shuttle Racking

  • Control up to 18 shuttles simultaneously
  • Real-time inventory control
  • In just two seconds, the load is lifted
  • High-density storage performs well, more effective

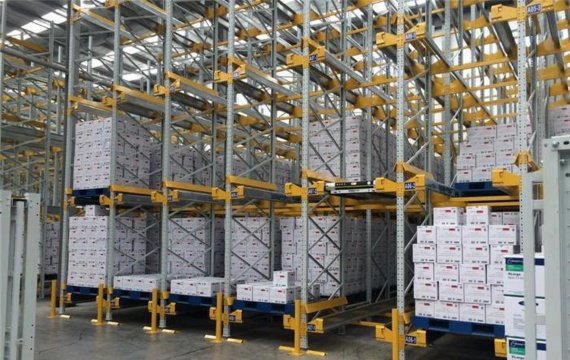

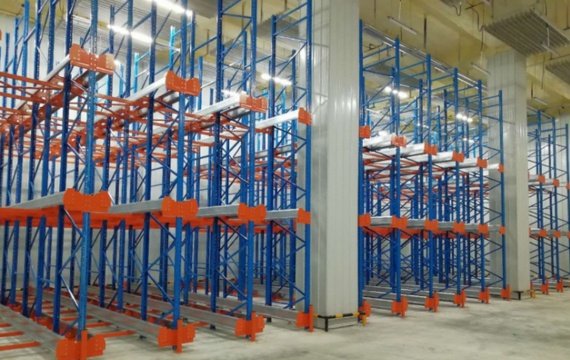

What is Pallet Shuttle Racking

Shuttle Racking Systems allow the storage of goods inside channels in a semi-automated manner. The OKE Storage Shuttle Pallet Racking can hold about 1000 pallet placements.

A lithium battery powers the pallet shuttle. These batteries offer semi-automatic pallet shuttle racks for up to eight hours. They have a long service life and can be fully charged in under eight hours.

Read More

Pallet Shuttle
Shuttle Racking
Shuttle Racking System

Product Details

Strong Upright Frame
Strong Upright Frame
Shuttle Car Rail
Shuttle Car Rail
Entry Guide
Entry Guide
Double Arm
Double Arm
Post Guard
Post Guard
Stopper Angle
Stopper Angle
Support Beam
Support Beam
Shuttle Car
Shuttle Car
Adjustable BasePlate
Adjustable BasePlate

Pallet Shuttle Racking Load Test Details

Pallet Shuttle Racking – Different Systems

The Shuttle Pallet Racking System has two Systems:
LIFO (Last First Out) Technique
In this technique, you first have to remove the most recently loaded pallet when unloading is required. Furthermore, Loading and unloading of the trucks also take place on the same side of the truck.
FIFI (First In – First Out) Technique
In this technique, the item that is stored first will be retrieved first. Due to this storage method, dual aisles or two aisles are needed.

Send Inquiry Now
Pallet Shuttle Racking – Different Systems
Pallet Shuttle – Advantages

Pallet Shuttle – Advantages

There are several benefits to using the Pallet Shuttle System, including:

  • Automated pallet picking and retrieval; fast and sustainable.
  • Can handle pallets in either FIFO or LIFO order.
  • By using remote controls and bar codes, error margins are drastically reduced.
  • Pallets are counted automatically using sensors, allowing inventory to be controlled automatically.
  • Channel lengths of up to 30 pallets are possible and you can lift pallets up to 2000kg (4400 lbs.).
  • Durable and reliable, eight wheels are evenly distributed with equal pressure.
  • No special forklifts are needed.
  • Time-saving and cost-effective.
  • Equipment and operating staff are at low risk of damage.
Send Inquiry Now

Pallet Shuttle – Operational Process

Shuttle cars are used to transport pallets quickly and easily. With a remote-control device, you can load or retrieve/unload pallets with a continuous flow of goods.

  • The pallet will need to be loaded onto the Pallet Shuttle with the help of a forklift.
  • By utilizing a shuttle car, pallets can be efficiently and rapidly transported to the nearest vacant position.
  • Once Pallet Shuttle Cars arrive at a new location, they release or unload pallets immediately at the first available location.
  • The cart then descends to the ground to grab the new pallet.
  • A computer program manages the movement and the positioning of the pallets.
Send Inquiry Now
Pallet Shuttle – Operational Process

Pallet Shuttle – Basic Components

Pallet Shuttle – Basic Components

  • Frame: It consists of two uprights with their diagonals. The baseplates, and floor fixings. Providing stability and security is their purpose.
  • Upright: Provide the main support and framework for the system.
  • Beam: Support the loaded pallets and join the frames together.
  • Shuttle Rails: For the Shuttle Racking System to be able to move along the aisle, these rails are installed. They are supported by beams.
  • External Rail Supports: Each rail is screwed into place with these supports. They are located on the outside uprights of the entry/exit frame.
  • Inner Rail Supports: All points except the entry and exit of the channel are fixed to the beams with these.
  • Pallet Guidance: It simplifies the process of deposition and keeps the unit loads on schedule and located at both ends of each level, on both sides of the lane.
  • Rail Backstop: Protect the shuttle and activate its braking system and stop.
  • Recovery Platform: Recover shuttles or loads from racks. Rescue teams go down the Pallet Shuttle’s storage channel to recover a broken-down shuttle.
  • Horizontal bracing: Installed in a crossed manner at the junction of adjacent support beams, it effectively reduces vibrations caused by the movement of trolleys, ensuring the overall stability of the racking system.
    Electric Shuttle Components:
  • Shuttle: Transporting pallets of goods along a track is done by an automated vehicle. Shuttles retrieve and deposit pallets using a central system.
  • Control Cabinet: It is responsible for providing power, managing communication, ensuring safety, monitoring performance, and enabling user interaction with the shuttle car.
  • Lithium Battery: It provides electrical energy to the shuttle’s motor, control systems, and other electrical components in the shuttle car.
  • Anti-Collision Bar: It prevents the shuttle car from colliding with obstacles or other shuttle cars, protecting the goods and the system.
  • Frame Assembly: The Frame Assembly is the structure of the shuttle car that holds and protects the electrical and mechanical components.
  • Button Signal Lamps: They are used to indicate the status of the shuttle car and give signals to the operators or other shuttle cars in the system.
  • Guide Wheel: The Guide Wheel and Slave Wheel assist the shuttle car in moving along the racking system with stability and accuracy.
  • Drive Wheels: Dedicated shuttles are employed to move stuff efficiently from one place to another throughout the inner lanes of the facility.
  • Laser Sensor: It is used to detect the position of the shuttle car, additionally, the distance to nearby objects, such as pallets or obstacles.
  • Lifting Mechanism: Lifting mechanisms facilitate pallet movement since they allow pallets to be lifted easily.

Our Safety Measures Of Pallet Shuttle Racking

Our Safety Measures Of Pallet Shuttle Racking1
Our Safety Measures Of Pallet Shuttle Racking2

To ensure the stability and safety of our racking structures and to provide you with peace of mind for the secure use of our products, we have implemented multiple safety measures and employed high-standard structural design.

Racking:
Support Beams: We use reinforced support beams (2mm thick) that are securely fastened to the guide rails, enhancing the support of the rails and reducing any swaying or vibrations caused by the shuttle cars, thereby strengthening the overall stability of the racking.
Galvanized Guide Rails: High-strength galvanized guide rails with a thickness of up to 3.0mm are employed to maximize longevity and enhance wear resistance.
Single and Double Arms: Specially designed single and double Arms are welded to the central beams, ensuring excellent fixation of the guide rails and maintaining overall structural stability.
Horizontal Bracing: Circular pipes with a thickness of 1.5mm are cross-installed on adjacent support beams to minimize any swaying due to shuttle car movements, guaranteeing the overall stability of the racking.
End Caps: Thickened end caps (3mm thick) effectively prevent the shuttle cars from driving out of the guide rails, reducing the risk of damage to the shuttle cars.
Frame Protectors and Guardrails: Thick, high-quality steel materials are used to prevent collisions between forklifts and the racking, providing better protection for the racking.
Guide Boards: These guide and correct the position of goods when the shuttle cars are carrying them, preventing any misalignment.
Forklift Limiters: Prevent forklifts from entering the interior of the racking, thus safeguarding the racking’s stability.
Adjustable Base Feet: Installed at the base of the columns, adjustable screws are used to ensure the levelness between the columns and the ground, calibrating the horizontal alignment of the guide rails and ensuring smooth operation of the shuttle cars.

Shuttle:
Sensors: Ensure the safe distance between shuttle cars and obstacles to guarantee the safe use of the shuttle cars.
Lifting Structure: Equipped with rubber padding to reduce wear and impact when loading and unloading goods.
Travel Wheels: Made from high-tech polyurethane material to minimize wear on the wheels and tracks, thus extending the wheel’s lifespan.
Buzzer: Issues sound and light alarms in case of anomalies, ensuring the safety of the racking, shuttle cars, and operators.
Emergency Button: Allows immediate suspension in case of emergencies, reducing potential damage to the shuttle cars and racking.
Rubber Bumper Blocks: Protect the shuttle cars, reduce wear, and absorb impact on the racking.

Design Origin and Force Analysis

Design Origin and Force Analysis1
Design Origin and Force Analysis2

Our racking design strictly adheres to the standards of the People’s Republic of China – WB/T 1076—2018. The coating thickness on the racking is in strict accordance with the provisions of GB/T 13452.2, whether it’s powder coating or painting. The paint film hardness complies with the requirements of GB/T 6739—2006.

For the force analysis of the racking:
Dead Load: The racking’s self-weight. Live Load: Each pallet holds goods weighing 800 kg and is placed on the beams on both sides. The force borne by each beam is 3920 N per LB, where LB represents the length of the beam. This results in three different force values of 2.61 N/mm, 3.02 N/mm, and 3.14 N/mm, corresponding to beam lengths of 1500 mm, 1300 mm, and 1250 mm, respectively.

Under full load conditions, the safety factor is 4.84.

About OKE Storage - Pallet Shuttle Racking

About OKE Storage - Pallet Shuttle Racking1
About OKE Storage - Pallet Shuttle Racking2

OKE Storage intends to design and manufacture the Shuttle Pallet Racking compact storage system, which includes the required rack structure, as well as the shuttles themselves. A very competitive price is offered by OKE Storage Pallet Shuttle.
We provide a fully automated production process for Pallet Shuttle Racking solutions. Our trained installation team ensures that your pallet shuttle rack is assembled correctly.
Our team will help you make a wise buying decision by analyzing your warehouse area, and workflows, and double-checking your warehouse design.
A 10-year warranty is provided by OKE Storage. The product is designed to meet the safety standards of OEMs and international safety.

Design Service

1. Design Drawing

2. Design Color

Pallet Shuttle Racking Customized Color

Pallet Shuttle Racking Powder Coating

Pallet Shuttle Racking Upright Powder Coating

Why OKE Storage reliable and trusted?

Aisle Selection Single Row, back-to-back Rows, and multiple Rows
Individual Load Height ≤2m, customizable
Racking Height ≤10m, customizable
Racking Depth Maximum 35 pallets deep
Access Method FIFO/FILO
Delivery Time 20-25 days for one container
Product Details
Model Name Pallet Shuttle Racking
Brand Name OKE Storage
Pallet Size 1000 x 1200-1400 x 1500mm
Maximum Load Capacity 1500 kg
Shuttle Weight 285 kg-365 kg
Empty Speed 1.5m/s
Loaded Speed 0.8m/s
Motor Imported from the United States, 480VDC 500W
Lifting Height ≤45mm
Control System Siemens S7-200 PLC from Germany
Positioning System P+F/SICK from Germany
Battery Operating Time ≥8h
Control Method Remote control
Battery Lifespan Approximately 1000 times
Charging Time 3-4h
Products Support
Free Consultation Yes, Any Questions You Can Consult With Free.
Support For Custom Yes
Free Design Yes, CAD/PDF/3D Drawing
Free Sample Available (Delivery Cost By Buyer)
3D Sample Yes, 1:1 3D Sample, Save Your Time And Cost of Trial and Error
Pre-installation Yes
Capacity Test Yes, If Needed.
OEM&ODM Available
Certification ISO9001/14001/10012/CE
Lead Time 15-20 Days For Regular Pallet Racking, One Container
Installation Service Yes, Submit the Installation Drawing Or Video, and send the Engineer To Your Site If Needed.
Maintenance Service Yes, We Submit a Free Maintenance Guide.
Repair Service Yes, We Submit Repair Services.
  • ” OKE Storage Pallet Shuttle revolutionizes warehouse operations! Semi-automated, high-density storage has helped us save an incredible amount of space. Besides improving productivity, the system has reduced manual labor.”

  • “Excellent OKE Storage customer service. Through consultation, installation, and training, the team was knowledgeable, responsive, and professional. Furthermore, the system provides high-density storage, which is a major plus.”

  • “We’ve seen incredible results from Pallet Shuttle. In consequence, warehouse space has been optimized and throughput has improved. Automated shuttles have improved safety and reduced manual labor. Streamline your warehouse operations with this system.”

OKE Certificate
Material

Pallet Shuttle Racking Material

Load Capacity Test Report
Detailed Quality Control
Advanced Production Equipment

Pallet Shuttle Racking Advanced Production Equipment

Production Process

Pallet Shuttle Racking Production Process

FAQ

Precautions for Pallet Shuttle Use:
  1. Suitable for storage pallets 2. Store the same type of items in each aisle.
  2. Training and Operator Knowledge: Ensure operators are familiar with the operation manual and safety guidelines.
  3. Maintenance and Upkeep: Regularly maintain and service the shuttle car and racking equipment.
Is Shuttle Pallet Racking Expensive to Manufacture?

It has a lower comprehensive cost compared to drive-in racks, push-back racks, and gravity racks.

What Are the Forms of Pallet Shuttle System?
  1. Regular forklift + pallet shuttle racking system, Cost-effective and accommodates more storage positions.
  2. Mother-son pallet shuttle system, Simpler single-machine structure with fewer failure points, energy-efficient.
  3. Stacker crane + pallet shuttle system, Combines a stacker crane with multiple shuttle cars to enhance operational efficiency,
  4. Suitable for high-density storage with lower efficiency requirements.
What to do if there's a failure in shuttle car racking?

We offer 24/7 customer service. Our shuttle features several safety designs to prevent failures, including anti-collision measures, laser positioning protection systems, and safeguards for battery and temperature-related issues.

How Long Does it Take to Receive the racking?

On average, it takes 20-25 days. Customized products may take longer.

What Is the Load Capacity of the Shuttle Cars?

The load capacity can reach up to 1500 kg, with the weight of the shuttle car itself ranging from 285 kg to 365 kg.

Do You Provide Installation Services?

We provide detailed installation drawings or videos. If needed, we can offer on-site installation guidance to ensure a smooth and safe installation process.
