Heavy Duty Cantilever Racks

  • Handling large loads and capacities.
  • adding arms to increase upright capacity.
  • Maximize working efficiency.
  • Easy accessibility.
Request Our Latest Price

What is Heavy Duty Cantilever Racks

The heavy duty cantilever racking system is made of durable and robust Q235B steel material, capable of storing loads of any length and bulkiness.

The load-bearing capacity of the heavy duty cantilever rack is remarkable, Utilizing 3mm thick H-shaped cold-rolled steel uprights and cantilever arms, a single arm can support a maximum load of up to 800kg, with an overall maximum load capacity of approximately 5000kg.

This is a heavy-duty storage solution that is easy to load and unload with a jack or a forklift, and has low maintenance costs. OKE always offers you this high-quality storage option.

OKE Storage Heavy Duty Cantilever Rack

Manufacturing Process

Heavy Duty Racks
Heavy Duty Racks
Cantilever Racking Heavy Duty
Cantilever Racking Heavy Duty
Cantilever Pallet Racking
Cantilever Pallet Racking

Product Deatils

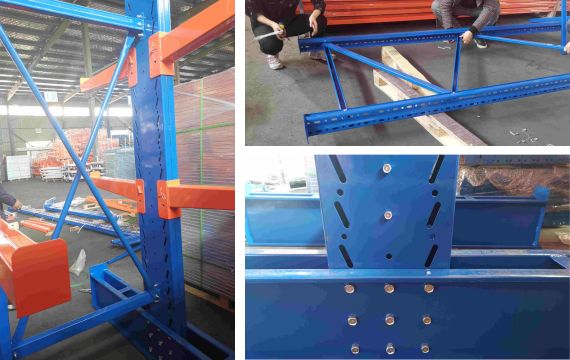

Heavy Duty Cantilever Racks Base Connect
Base Connect
Heavy Duty Cantilever Racks Bolted Back Bracing
Bolted Back Bracing
Heavy Duty Cantilever Racks Bolted Baseplate
Bolted Baseplate
Safety Lock
Safety Lock
Heavy Duty Cantilever Racks Upright Hole
Upright Hole
Heavy Duty Cantilever Racks Back Bracing
Back Bracing

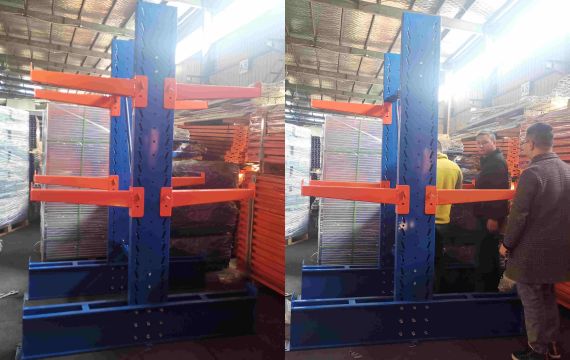

Pre-Installation Test

Our heavy duty cantilever racks will give you a pre-installation test to eliminate any quality and load-bearing issues, no other supplier is as meticulous as we are!

Ajustable Arms and Configuration

The horizontal arms of the heavy duty cantilever racks can extend outward from the vertical columns to accommodate various load sizes and shapes. The arm’s length usually ranges from 600mm to 1400mm, The total height of heavy-duty cantilever rack can go up to about 6m.

These configurations are adjustable or can be customized according to your requirements.

Send Inquiry Now1
Heavy Duty Cantilever Racks Benefits
Heavy Duty Cantilever Racks – Components

Heavy Duty Cantilever Racks – Components

Base: made of H-shaped steel with super strong load-bearing capacity, connected to the columns and the ground to ensure the stability of the cantilevered shelves in the vertical and horizontal directions

Uprights(200*60/300*90mm*3.0mm): Using holes in the uprights, cantilever arms can be connected to the uprights.

Cantilever Arms(60*40*1.5mm/100*50*3.0mm): To store long or bulky items, these arms can serve as shelves. Straight arms and tilted arms are available.

Braces: Braces improve stability of the whole heavy duty cantilever rack and support the uprights horizontally and diagonally.

Send Inquiry Now2

Heavy Duty Cantilever Racks Powder Coating

Heavy Duty Cantilever Racks Coating for Beam
Heavy Duty Cantilever Racks Upright Coating

OKE's Strictly Racking Quality Inspection

Heavy Duty Cantilever Racks – Specifications

  • Parameters Range
  • Weight & Dimensions
  • Product Details
  • Products Support
  • Successful Cases
UprightSingle-sided/Double-sided, Height 2000-5000mm, Customizable
Cantilever ShapeHorizontal/Tilted
Cantilever Length 600-1400mm, Customizable
Load Capacity A single cantilever arm: max 800kg
The overall load capacity: max 5000kg.
Hole Spacing 100mm
ColorBlue(RAL5005/5015), Orange(RAL2004)or Customized: All RAL Color, MOQ( per 20FT container)
Delivery Time15-20 days for one container
Weight & Dimensions
Stand Depth800mm/900mm/1000mm/1100mm/1200mm
Width600-1400mm Or Customized
Arm Section60*40*1.5mm/100*50*3.0mm
Upright Section200*60/300*90mm*3.0mm
Pitch Holes50mm
Weight Capacity/Level500-2000kg/Arm
Total Capacity500-15000kg
Height6m Or Customized
Product Details
Model NumberHeavy Duty Cantilever Racking
Assembly RequiredYes
Brand NameOKE Storage
Arm TypeTube Beam/Box Beam
Construction TypeBolted
TypeStarter
Number Of LevelsAccording To Customer Needs
MaterialSteel/Q 235B Steel(Same Level SS400)
Unit Bay Capacity500kg – 15000kg / Customized
ColorStandard: Blue(RAL5005/5015), Orange(RAL2004),Customized: All RAL Color, MOQ( per 20FT container)
Surface FinishPowder Coated/ Galvanized
PackingPackage Ends With Cardboard And Bundle With Steel Strapped Outsides, Follow The Customer’s Needs.
FeatureDurable, Corrosion Protection
UseWarehouse Rack
UsageWarehouse Storage System
ApplicationWidely Used
HS Code73089000
Products Support
Free ConsultationYes, Any Questions You Can Consult With Free.
Support For CustomYes
Free DesignYes, CAD/PDF/3D Drawing
Free SampleAvailable (Delivery Cost By Buyer)
3D SampleYes, 1:1 3D Sample, Save Your Time And Cost of Trial and Error
Pre-installationYes
Capacity TestYes, If Needed.
OEM&ODMAvailable
CertificationCE / ISO
Lead Time15-20 Days For Regular Pallet Racking, One Container
Installation ServiceYes, Submit the Installation Drawing Or Video, and send the Engineer To Your Site If Needed.
Maintenance ServiceYes, We Submit a Free Maintenance Guide.
Repair ServiceYes, We Submit Repair Services.

  • “I recently purchased the I Beam Cantilever Rack from OKE Storage and I have been extremely impressed with the quality and durability of the product. The installation process was quick and easy. I would highly recommend these racks.”

  • “I have been using OKE Storage’s Heavy Duty Cantilever Racks for several months now and I couldn’t be happier with my purchase. The racks are very well-made and have held up perfectly, even under heavy loads. Overall, I would recommend these racks.”

  • “I recently upgraded my warehouse with OKE Storage’s Heavy Duty Cantilever Racks and I am extremely satisfied with my purchase. The racks have exceeded my expectations in terms of strength and stability. I would recommend these racks.”

Heavy Duty Cantilever Racks Material

Heavy Duty Cantilever Racks Material

Load Capacity Test and SGS Report
Packaging
Shipping
Detailed Quality Control

Heavy Duty Cantilever Racks Detailed Quality Control 1     Heavy Duty Cantilever Racks Detailed Quality Control 2

Heavy Duty Cantilever Racks Production Process

Heavy Duty Cantilever Racks Production Process

Advanced Production Equipment

Heavy Duty Cantilever Racks Advanced Production Equipment

Related Product

FAQ

What is the delivery time?

Typically, it takes 15-20 days for one container. For custom products, the specific time will depend on the consultation results.

Do you have relevant quality certifications?

We place a strong emphasis on quality management systems and have obtained ISO 9001 certification. Additionally, our products comply with CE certification,AS4084, American RMI standards, and FEM standards.

What warranty or support is provided for cantilever racks?

We offer a 10-year warranty and 24/7 after-sales service. Please feel free to contact us with any questions.
