Cantilever Rack Manufacturer and Supplier in China

Key Features of Cantilever Rack

  • Safe and secure online payment
  • Fast and on-time delivery
  • Wide range of cantilever pallet racking
  • High-quality material and rack manufacturing

What is Cantilever Rack

A cantilever rack is a convenient and one of the most popular storage systems for stock heavyweight materials. Ideally, these racks are best for quickly retrieving heavy loads, allowing direct access for workers. Moreover, you can get them in structural and roll-formed cantilever rack designs depending on your goods’ length, weight, and shape.

Another great thing about this rack is its integration with your current warehouse. You can adjust the height of these racks to enjoy maximum vertical storage. While many manufacturers offer used cantilever systems, it is always wise to install a new structure for durability and safety. So if you want to keep heavy goods on a rack, a cantilever is the best option.

Read More

Cantilever Rack Benifits

Exceptional Load-bearing Capacity
Exceptional Load-bearing Capacity

The columns and cantilevers, made of 3mm thick H-shaped cold-rolled steel, can support loads of up to 800kg per arm and a total load capacity of approximately 5000kg.

Flexible Design
Flexible Design

Rack height can be freely adjusted based on the hole spacing (100mm) on the columns. Cantilever lengths can also be customized as needed.

Easy Assembly
Easy Assembly

Columns and crossbeams are joined using plug-in or bolted combinations, making installation convenient, disassembly simple, and transportation easy.

Convenient Access and Clear Visibility
Convenient Access and Clear Visibility

Goods stored on the racking are not squeezed, ensuring the integrity of the goods and reducing losses. Open-style racking facilitates inventory and measurement.

Types of Cantilever Pallet Racks

There are two main types of cantilever racking.
Heavy-duty Cantilever Racks
Heavy-duty cantilever solutions are best for solid and bulky goods. They have special uprights, brace sets, and arms. The heavy-duty type can be erected from 8 feet to 20 feet maximum. The arms can be inclined or straight made with 7 to 10-gauge steel to hold around 4000 pounds with a maximum length between 54 and 60 inches. However, at OKE Storage we use i-beams and utilize steel gauges to manufacture these racks according to our customers’ load-bearing requirements.
Brace sets come separately depending on your selected uprights and arms. For instance, if you are installing a cantilever system that is 20 feet tall with 48 inches of arm’s length. Then, you may only need a single set of braces.
Light-duty Cantilever Racks
A light-duty cantilever pallet racking is best for light to medium-weight storage. It is also a very inexpensive solution to keep oversized goods. Due to its cost-effectiveness, light-duty racks are in high demand.
More Categories of Cantilever Storage Rack Systems

  • Lumber Cantilever Rack: Best for bulky materials that are wide in their structure, like plywood or lumber.
  • Salvage Yard Cantilever Rack: This type of cantilever metal rack saves great space and is used to keep vehicles. It is efficient for recycling centers.
Types of Cantilever Pallet Racks
Benefits of Using Steel Storage Systems Cantilever Rack

Benefits of Using Steel Storage Systems Cantilever Rack

You can get a good deal of advantages when you have a cantilever storage solution in your warehouse:

  • Saves good space area
  • Strong and high life span
  • Uncomplicated customization
  • Several options for load capacities
  • Ease of loading and unloading of stock
  • Easy combination with other storage systems
  • Zero to minimum obstructions to reach racking

Main Components of Cantilever Pallet Racking

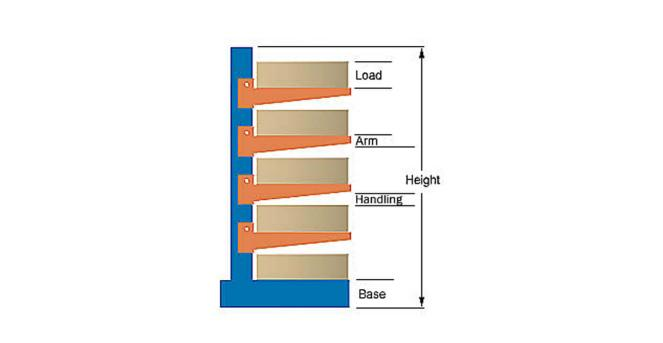

Typically, cantilever metal storage racks are mainly composed of the following components:
Uprights
Uprights are an essential part of a cantilever storage rack system. They are installed with the bases, which makes the entire system robust. Uprights are divided into single-sided and double-sided types, made from high-quality Q235 cold-rolled steel as raw material, with a hole spacing of 100mm. The cantilever arms can be adjusted vertically based on hole spacing units.
Beams
Beams, also called arms in cantilever steel racks, act as levels for storing goods. They come in horizontal and tilted (2°~4°) types. Light-duty rack cantilever arms are embedded into the uprights, while heavy-duty rack cantilever arms require bolt connections.
Base
Base Construction Using High Load-Bearing H-Beam for Enhanced Cantilever Rack Stability in Both Vertical and Horizontal Directions.
Cross Braces
Cross braces horizontally connect the uprights, and eight forks crisscross connect the uprights, enhancing the torsion and stability of the structural cantilever.

Main Components of Cantilever Pallet Racking
Cantilever Rack Working Principle

Cantilever Rack Working Principle

The uprights and base provide stable and robust support. Goods are placed on the cantilever arms, and the cantilever arms balance the load through the uprights and base.
Goods retrieval and storage are typically performed using forklifts or overhead cranes. Forklifts gently place the goods onto the cantilever arms, where the tilt angle of the arms and the end retainers prevent goods from rolling or scattering. The appropriate number and length of cantilever arms ensure that the goods are securely stored.

How to Find Out the Right Size of Cantilever Racks

Finding Out the Right Upright Height of Cantilever Racks:
Before installing cantilever warehouse racks, take correct measurements of the height of your building. Also, keep the upright height extended for about 4 to 6 feet compared to the top surface of your load. It will allow the forklift operator to load and unload goods quickly.
Finding Out the Required Arms Capacity of Cantilever Racks:
To know how much load-bearing capacity the arms of your warehouse structural cantilever have, divide the total weight of your goods by the number of arms. Also, ensure the load is not uneven when placed on the arms.
Finding Out the Correct Bracing Length of Cantilever Racks:
The length of bracing in this rack is always similar to the length of the total space between two uprights.

How to Find Out the Right Size of Cantilever Racks

Safety Guidelines Before Building Cantilever Storage Racks

Cantilever Storage Racks Safety Guidelines1
Cantilever Storage Racks Safety Guidelines2

It is necessary to install a metal cantilever rack correctly for the sake of safety and easy operations. So when building the rack, take care of the following things.
1. Make sure there is no deflection when keeping load because it puts extra pressure on the arms. To check this, elevate a single structure, fix arms/beams, and keep two wooden blocks. Also, do not leave more than 1/2 foot of space between 2 arms. If there is deflection, it means the load exceeds the distance between two arms.

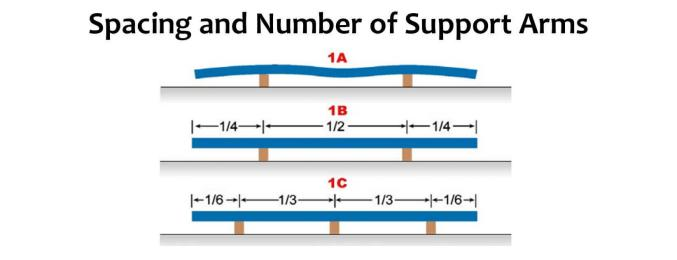

2. Select arms’ length in even numbers according to the wideness of your brace sets. Remember, most braces are available from 2ft wide to 8ft wide.
3. If deflection is still in two arms, you can add three arms. Also, ensure your goods don’t overhang the arms for more than 1/2 inch.

Safety Accessories Our meticulously designed safety accessories, coupled with top-notch structural engineering, enhance the stability of our racking units, providing you with peace of mind, safety, and practicality.

Tilted Cantilever: When the weight of goods causes a downward angle shift in the cantilever, the upward angle (2°~4°) effectively prevents goods from scattering.
Cantilever Arm Ends & Base Retainers: Installing retainers at the outer ends of the cantilever arms and on the base prevents goods from rolling and falling, while also safeguarding operators.
Specially Designed Cross Braces: Connecting the uprights horizontally and diagonally strengthens the torsional stability of the cantilever rack.
Extended Base: The base is intentionally designed longer than the cantilever arms, effectively preventing goods from tilting the overall structure when placed on the arms.
High-Strength Base Bolts: Light-duty rack bases are secured with nine M16120 bolts, while heavy-duty rack bases use four M18290 bolts. These high-quality bolts reinforce the connection between the uprights and the base, enhancing the overall stability of the cantilever rack and preventing the risk of toppling.
Premium-Quality Bolt Fastening: Grade 8.8 premium expansion bolts (M12*110) securely anchor the base to the ground.

Design Source and Force Analysis

Cantilever Rack Design Source and Force Analysis1
Cantilever Rack Design Source and Force Analysis2

Our product design and stress analysis are based on various industry standards for storage racks, including “Specifications for Dimensions and Rated Loads of Industrial Racks” (GB/T 27924-2011), “Design and Calculation of Industrial Racks” (GB/T 28576-2012), “Cantilever Racks” (20100355-T-469), Japan’s “Technical Conditions for Welded Steel Structural Racks in Stereoscopic Warehouses” (JB/T 5323-91), the United States “Safety Standard for Steel Storage Racks Used in Industrial and Commercial Applications” (ANSI/MH10.21984), and “Specification for the Design, Testing, and Utilization of Industrial Steel Storage Racks” (MH16.1-2004).

Column and Cantilever Stress Analysis: The maximum moment M on the column is given by the formula M = ql^2 + 2qlx, where q represents the load. At the junction of the cantilever beam and the column, the maximum bending stress σ on the column is calculated as σ = M / W^2, where W^2 is the section modulus of the column. Under full load conditions, the column experiences the maximum bending stress, resulting in the maximum deflection on one side of the rack. When the first layer is loaded, the column deflects, and this pattern continues for each subsequent layer as it is loaded, resulting in column deflection at the nth layer.

Shelf Vibration Stability Analysis According to the latest edition of the “Seismic Design Code for Structures,” seismic loads only need to be calculated in the horizontal direction [8]. Based on local building seismic resistance requirements, this shelf is designed for a seismic resistance level of 6, with a seismic acceleration of 0.1g.
In the formula:
Cv represents the seismic coefficient, related to the site and seismic acceleration, and is taken as Cv = 0.24.
R is the safety factor, set at R = 4.
T is the shelf vibration period, calculated as T = 1/f = 0.515 seconds.
By combining equations (7) and (8), we obtain a horizontal load F of 44,671 Newtons.

OKE Storage – Great Partner for Manufacturing Cantilever Systems

Great Partner for Manufacturing Cantilever Systems1
Great Partner for Manufacturing Cantilever Systems2

OKE Storage offers a wide range of options when you need new cantilever steel storage racks. We are one of the leading cantilever racking suppliers in the world. With over 20 years of experience as cantilever rack manufacturers, we have served 85+ customers in different countries. Our top buyers include prominent companies, including DHL, Peugeot, Toyota, Pepsi, and many more. We have a great team of engineers who test the entire structure of the cantilever storage system and customize your order per your requirements.

Whether you want a single or double-sided cantilever racking system, we can manufacture great solutions with 5000-lb load-bearing capacity per arm. We coordinate with our customers to make long-lasting and budget-friendly storage systems. Contact us today for more information about our racking solutions or to get advice from our experts.

Using Cantilever Racking in Different Industries – Suitable Applications

Cantilever Racking Application of Hardware & Building Materials

Hardware & Building Materials

A cantilever storage system is perfect for keeping building construction materials, especially steel sheets and iron.

Cantilever Racking Application of Manufacturing

Manufacturing

Manufacturing materials like fiber bundles, lumber, and other wood sheets, can be easily stored on the arms of these racks.

Cantilever Racking Application of Auto Accessories

Auto Accessories

With the help of a heavy-duty steel cantilever racks, you can keep cars as well as their accessories, making this storage solution ideal for car showrooms.

Cantilever Racking Application of Electronics & Electrical Appliances

Electronics & Electrical Appliances

Light or medium-duty cantilever steel rack lets you easily keep boxed electronic items, such as stoves and long fan blades.

Cantilever Racking Application of Long Material

Long Material

You can use industrial cantilever storage racks for storing different long materials, including bamboo, concrete slabs, and solar panels.

Cantilever Rack Manufacturer
Cantilever Rack Manufacturer

OKE Storage gives you Cantilever Pallet Racking which has convenient access and clear visibility. flexible Cantilever lengths design can also be customized as needed.

Why OKE Storage Reliable and Trusted?

Upright Single-sided/Double-sided, Height 2000-5000mm, Customizable
Cantilever Shape Horizontal/Tilted
Cantilever Length 600-1400mm, Customizable
Load Capacity A single cantilever arm: max 800kg
The overall load capacity: max 5000kg.
Hole Spacing 100mm
Color Blue(RAL5005/5015), Orange(RAL2004)or Customized: All RAL Color, MOQ( per 20FT container)
Delivery Time 15-20 days for one container
Weight & Dimensions
Stand Depth 800mm/900mm/1000mm/1100mm/1200mm
Width 600-1400mm Or Customized
Arm Section 60*40*1.5mm/100*50*3.0mm
Upright Section 200*60/300*90mm*3.0mm
Pitch Holes 50mm
Weight Capacity/Level 500-2000kg/Arm
Total Capacity 500-15000kg
Height 6m Or Customized
Product Details
Model Number Cantilever Racking
Assembly Required Yes
Brand Name OKE Storage
Arm Type Tube Beam/Box Beam
Construction Type Bolted
Type Starter
Number Of Levels According To Customer Needs
Material Steel/Q 235B Steel(Same Level SS400)
Unit Bay Capacity 500kg – 15000kg / Customized
Color Standard: Blue(RAL5005/5015), Orange(RAL2004),Customized: All RAL Color, MOQ( per 20FT container)
Surface Finish Powder Coated/ Galvanized
Packing Package Ends With Cardboard And Bundle With Steel Strapped Outsides, Follow The Customer’s Needs.
Feature Durable, Corrosion Protection
Use Warehouse Rack
Usage Warehouse Storage System
Application Widely Used
HS Code 73089000
Products Support
Free Consultation Yes, Any Questions You Can Consult With Free.
Support For Custom Yes
Free Design Yes, CAD/PDF/3D Drawing
Free Sample Available (Delivery Cost By Buyer)
3D Sample Yes, 1:1 3D Sample, Save Your Time And Cost of Trial and Error
Pre-installation Yes
Capacity Test Yes, If Needed.
OEM&ODM Available
Certification CE / ISO
Lead Time 15-20 Days For Regular Pallet Racking, One Container
Installation Service Yes, Submit the Installation Drawing Or Video, and send the Engineer To Your Site If Needed.
Maintenance Service Yes, We Submit a Free Maintenance Guide.
Repair Service Yes, We Submit Repair Services.
  • “I wanted a durable storage system for my construction company. So I talked to OKE Storage and agreed on a cantilever steel storage racks. Since then, we don’t need third-party services for long-sized products. “

  • “OKE Storage’s customer support team is admirable. From advising the best racking type to the final installation, this company stayed with me until I was 100% satisfied. “

  • “OKE Storage is a prime example of promise and high-quality racking systems. I am now their regular client from the US, and the company always delivers products on time. “

Cantilever Rack

If you have any questions, you can contact us, we will have professionals to design for you and issue free drawings.

What is Best – Roll-Formed or Structural Cantilever Arm Rack?

Roll-formed cantilever industrial storage systems have a bolt-less structure and are best for lightweight materials. Contrarily, in structural type the system is tightly fixed to the ground through bolting it. As a result, this cantilever type is perfect for keeping heavy goods.

What is an Estimated Cost of a New Cantilever Pallet Rack?

The cost of new warehouse cantilever pallet racking systems depends on your requirements, warehouse space, and racking design.

What are the Factors to Consider Before Purchasing Cantilever Metal Storage Racks?

Always pay attention to the roof of your warehouse so you can customize cantilever systems accordingly. Likewise, it is necessary to have correct uprights, braces, and arms, to avoid product overhanging or deflection.

What Type of Paint is Not Suitable for Outdoor Adjustable Cantilever Warehouse Racks?

A powdered cantilever system is not suitable for outdoor venues.

Can you Keep Goods at the Base of the Warehouse Cantilever Racking Systems?

Yes, storing materials at the base of your cantilever racking is safe.

How Can I Adjust or Expand the Cantilever Rack?

The interval between each hole in the uprights is 100mm, and the minimum adjustment distance for shelf height is 100mm. You can continue to add uprights to extend the depth of the cantilever rack.

What is the Delivery Time?

Typically, it takes 15-20 days for one container. For custom products, the specific time will depend on the consultation results.

What Maintenance and Upkeep are Required for Cantilever Racks?

Regular inspections, cleaning, checking of components, and replacement of worn parts are necessary. We also offer maintenance and upkeep services if needed.

What Warranty or Support is Provided for Cantilever Racks?

We offer a 10-year warranty and 24/7 after-sales service. Please feel free to contact us with any questions.

Do you Have Relevant Quality Certifications?

We place a strong emphasis on quality management systems and have obtained ISO 9001 certification. Additionally, our products comply with CE certification, AS4084, American RMI standards, and FEM standards.

What Should you Pay Attention to When Purchasing Cantilever Shelves?
  1. Determine the number and spacing of cantilever brackets. Find some wooden blocks and place goods on them. Watch for any deflection and if so, add another block to the bottom. The wooden blocks are the number and spacing of the cantilevers.

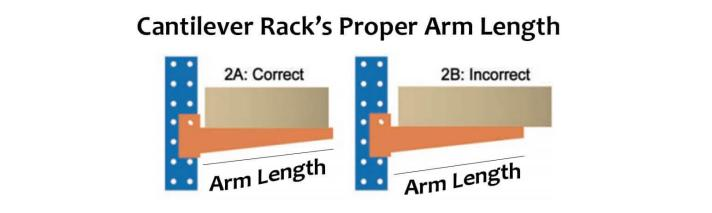

  2. Determine the arm length. Arm length is measured by cargo width. When placing goods, they should not exceed the length of the cantilever.
  3. Determine the height of the column: base height + number of arms + cargo width plus the space required for transportation. The height of the column can be obtained.
