Boltless Rack
Boltless Rack Features:
- Shelf heights are adjustable
- Allows product’s access from all sides
- Affordable and low-maintenance
- Powder-coated or galvanized
What is Boltless Rack
A Boltless Rack is a type of tool rack or warehouse rack that creates organized, efficient, and adaptable storage solutions.
The Boltless design allows quick assembly without bolts, nuts, or specialized tools. It typically consists of interlocking beams, uprights, and decking.
Boltless Rack offers three to eight storage shelves or levels where you can efficiently store your products.
Boltless Rack - Advantages
- No bolts, nuts, or special tools required for assembly
- Affordable
- Can support heavy loads
- Easy to reconfigure.
- Maximizes storage space
- Requires less maintenance
- Easily add more units
- Easy to move and reposition
- Keep items neatly organized
- No sharp edges or protruding hardware
- Improves ventilation around stored items.
- Excellent stability for heavy loads.
- Quick access
Boltless Rack Components
With a weight capacity from 150 kg to 500 kg and popular sizes including 180 x 90 x 40 cm, 168 x 75 x 30 cm, and 180 x 90 x 45 cm, Boltless Rack has the following components:
These are the vertical posts or columns. They feature pre-punched holes or keyhole slots to insert beams. Boltless Rack uprights are available in heights up to 5 m.
Beams are horizontal supports connecting the uprights. They often have rivets or tabs that fit into the slots on the uprights.
Decking:
Decking are flat shelves where items are placed. It sits on the beam’s top. They can be made of particle board, wire mesh, or steel. Each layer has a weight capacity of 170 kg.
Bracing consists of diagonal supports or cross braces that are installed between the uprights to add extra stability to the Boltless Rack.
Accessories of Boltless Rack
Right Footplate
Stabilizes the right side of the Boltless Rack unit, preventing it from tipping over and ensuring secure anchoring to the floor.
Left Footplate
Stabilizes the left side of the Boltless Rack unit, preventing tipping and enhancing stability.
Double Footplate
Provides support for both sides of the rack’s unit, offering increased stability and load distribution at the base.
Shelf Deck Support
Distributes weight evenly across the Boltless Rack shelf, enhancing the shelf’s load capacity. Essential for preventing sagging under heavy loads.
Shelf Support
Adds additional reinforcement and stability to the Boltless Rack unit, ensuring shelves remain level and secure.
Tie Plate
Connects multiple Boltless Rack units side by side, increasing stability and preventing movement between connected units.
Wall Tie for Boltless Shelving
Secures Boltless Rack units to the wall, providing additional support and preventing accidental tipping.
Starter and Adder Units
Basic units that include essential components such as vertical angle posts and beams. These units can be expanded with additional components to create a customized shelving system.
Installation Guide
- Position the first Boltless Rack vertical post upright.
- Slide bottom rivet beams into keyhole slots at the desired height.
- Tap beams with a mallet to lock them in place.
- Attach corresponding beams on the opposite post to form the base.
- Slide intermediate rivet beams into keyhole slots at the desired height.
- Tap with a mallet to secure beams in place.
- Repeat for all intermediate levels.
- Place top beams into keyhole slots on vertical posts.
- Use a mallet to ensure they are tightly locked.
- Select 5/8” particle board, steel, or wire decking.
- Drop chosen decking material into place on each level.
- If needed, add center supports to increase decking capacity.
Precautions of Boltless Rack
- Use the included anti-tip kit to secure the product to the wall before use.
- Wear work gloves during Boltless Rack assembly.
- Do not use it in high-humidity environments.
- Load capacities are for static loads only.
- Distribute weight evenly on each shelf, staying within the static load capacity.
Main Applications about Boltless Rack
Boltless Racks offer hygienic storage for various food items, and auto accessory stores benefit from Boltless Racks’ adjustable shelves, ensuring organized and efficient storage. also provide a secure, customizable storage solution for pharmaceutical chemicals, ensuring safe and contamination-free storage. boltless racks can also be suitable for e-commerce、textiles and garments、electronics & electrical appliances industries.
- Boltless Rack - Specifications

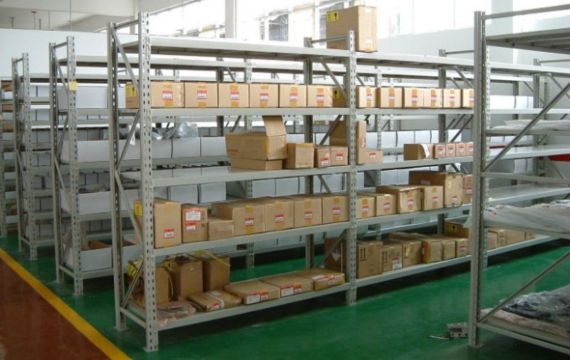

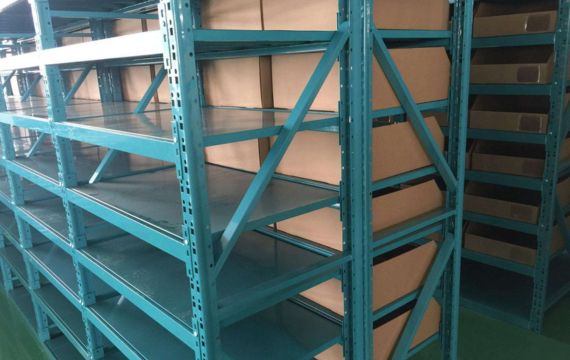

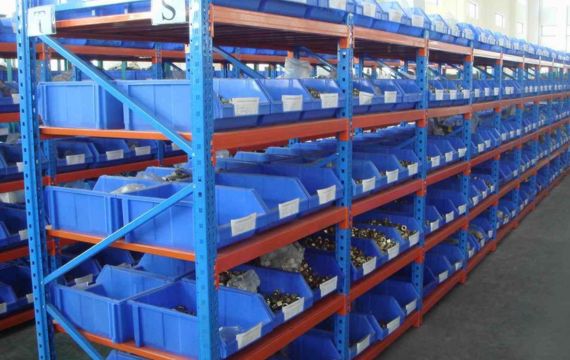

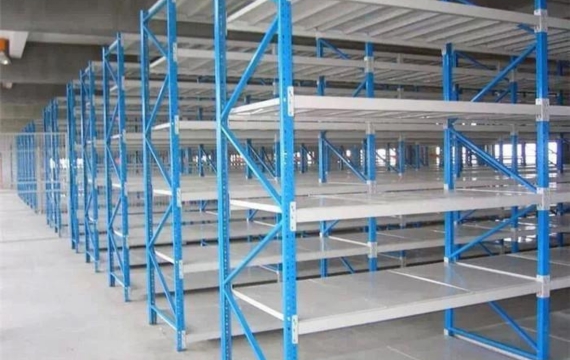

- Successful Gallery
- Choose Us For Your After Sales Service Support
| Category | Options/Specifications |
| Shelves/Tiers | 3, 4, 5, 6, 7, 8 |
| Shelf Deck Support | One support per shelf |
| Weight Capacity | 200 lbs. to 1500 lbs. per shelf |
| Decking Options | Industrial Grade 5/8″ particle board; Industrial Grade 5/8″ laminated particleboard; Steel Decking; Wire Decking |
| Decking Widths | 36”, 42”, 48”, 60”, 69”, 72”, 96” |
| Decking Depths | 12”, 15”, 18”, 24”, 30”, 36”, 48” |
| Adjustable Shelves | Every 1 1/2″ |
| Available Heights | 72”, 84”, 96”, 120”, 144” |
| Available Widths | 36”, 48”, 60”, 72”, 96” |
| Available Depths | 12”, 18”, 24”, 30”, 36”, 48” |
| Angle Posts (Regular Duty) | 2.5 ft. to 9 ft. |
| Angle Posts (Heavy Duty) | 7 ft. to 12 ft. |
| Double Rivet Beam Lengths | 12”, 15”, 18”, 24”, 30”, 36”, 42”, 48”, 60”, 69”, 72”, 96” |
| Double Rivet Channel Beam Lengths | 48”, 72”, 96” |
| Single Rivet Beam Lengths | 12”, 18”, 24”, 30”, 36”, 42”, 48” |
| Tie Plates Size | 2½” x 2½” |
At OKE Storage, Boltless Racks are crafted from premium Q235B steel, renowned for its plasticity and toughness. Our commitment to quality is validated by our CE certification and ISO 9001:2015 certification, guaranteeing that every product you receive meets the highest international standards.
Whether you need a free 3D design sample or a customized design, our expert team is ready to assist you. We provide free design services, including CAD, PDF, and 3D drawings, to help you visualize your storage solutions before committing.
We offer professional installation services, detailed installation instructions, and on-site engineering support to guarantee that your racking systems are set up correctly. Additionally, our capacity testing services ensure that your boltless racks meet the required standards and specifications, providing peace of mind.
OKE Storage offers a free maintenance guide to help you keep your systems in optimal condition. In the event of any issues, our repair services are available to promptly address and fix any problems. OKE Storage offers OEM and ODM services. You can have your logos printed on the racking surfaces, adding a professional touch to your storage solutions.
Related Product
Frequently Asked Questions
Yes, the slot-and-tab mechanism allows the shelves and posts to be quickly separated without the need for tools, facilitating easy relocation or reconfiguration.
Yes, additional shelves can be easily added. This allows you to expand your storage capacity as needed without having to buy a whole new unit.
Yes, the interlocking design of the shelves and posts provides a solid structure that can handle heavy loads and frequent use.
Yes, they come with adjustable feet. This allows you to level the rack on uneven surfaces, ensuring stability and preventing wobbling.
These racks are typically available in blue, gray, and white colors. We can also customize the color for your rack as per your needs.
Yes, they include safety features such as reinforced beams, safety clips, and anti-tip brackets to enhance stability and prevent accidents.
Yes, they are ideal for archival storage. Their adjustable shelves and sturdy design make them perfect for storing boxes of documents, files, and other archival materials.
They can be cleaned with a damp cloth and mild detergent. Regular cleaning helps maintain their appearance and prevents the build-up of dust and dirt.
